SL-IC-140x35 IC Realtime Camera Mud-In Mount

SL-IC-140x35 IC Realtime Camera Mud-In Mount

Name: SL-IC-140x35 IC Realtime Camera Mud-In Mount
Brand: SeeLess.com
Price: 247.00 USD
Availability: OutOfStock

$247.00 USD

Sale Sold out

Out of stock

IC Realtime Camera custom in-wall plaster recess mount designed specifically for the SL-IC-140x35 model. Features seamless integration with sleek, minimalistic look without compromising performance. Made from environmentally and wireless friendly materials. 5-year warranty.

Product Details

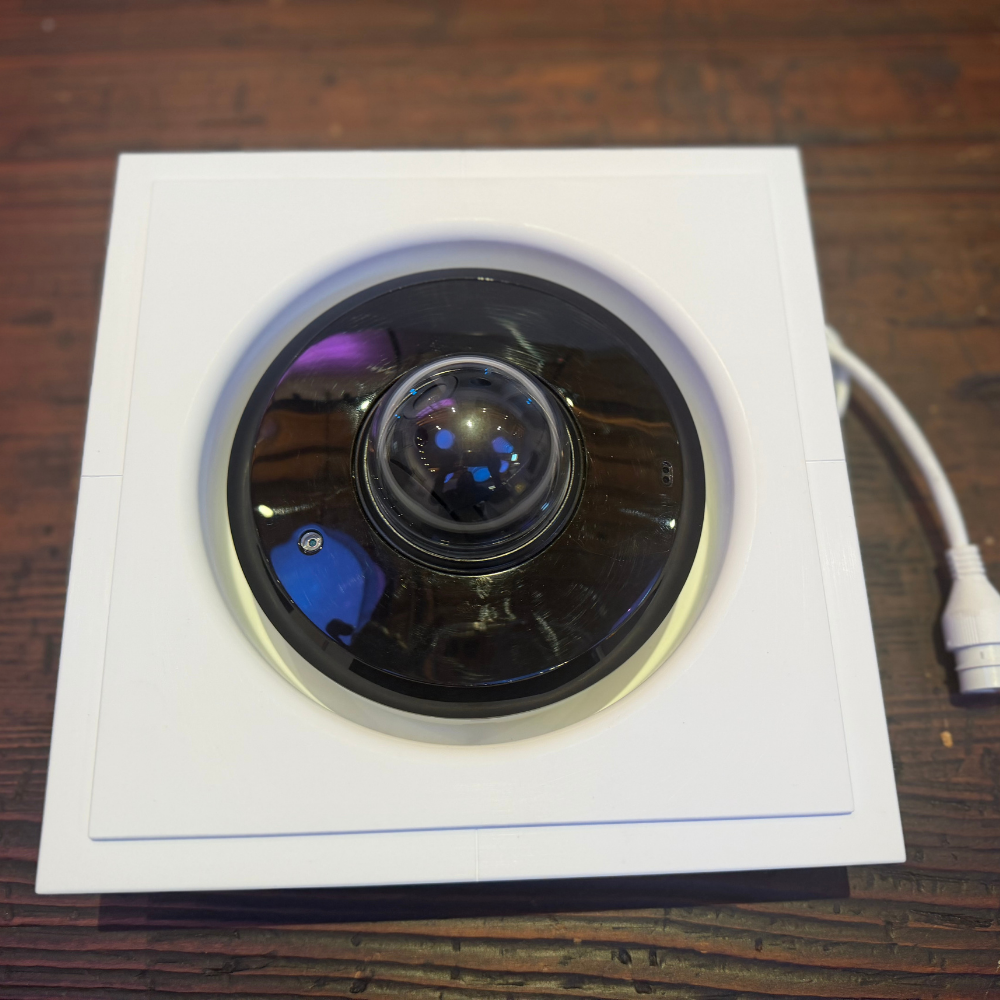

The SL-IC-140x35 is a custom in-wall plaster recess mount engineered specifically for the IC Realtime camera. It integrates the camera directly into the wall surface, eliminating visible housings and trim rings so the device sits flush with the finished plaster. The result is a clean, architectural appearance that preserves full camera performance and field of view while keeping the hardware discreet.

Built from environmentally friendly, wireless-signal-friendly materials, the platform is designed to disappear into the wall and complement high-end interiors where visible security hardware would otherwise disrupt the design. Backed by a 5-year warranty.

Specification Details

Model:

SL-IC-140x35

Compatible device:

IC Realtime IC-140x35 camera

Platform face (outer):

7.93 in / 201.48 mm square

Overall footprint including mud-in flanges:

9.9 in / 251.48 mm

Camera opening (inner aperture):

5.54 in / 140.7 mm dia.

Recess depth:

1.36 in / 34.5 mm

Overall assembly depth:

1.95 in / 49.5 mm

Material:

Eco-friendly, wireless-friendly composite

Mounting:

Plaster / mud-in (trimless, seamless)

Warranty:

5 years

Features & Benefits

Trimless, seamless flush mount — the camera integrates directly into the wall with no visible bezel or housing.
Purpose-built fit — dimensioned specifically for the IC Realtime IC-140x35, so the camera seats precisely with no gaps and full field of view retained.
Wireless-friendly materials — won't interfere with device signal performance.
Environmentally friendly construction.
Clean architectural aesthetic that suits luxury residential and commercial interiors.
5-year warranty.

Data Sheet

[Download Install Guide]

[Download Dimensional Data]

Installation Methods & Applications

Designed for new construction and remodels using standard mud-in (plaster-in) installation. The platform is set into the wall opening and finished over with joint compound, leaving the camera flush with the surrounding surface for a fully integrated look. Ideal for residential and commercial spaces where discreet, professionally installed surveillance is required without compromising interior design. Refer to the downloadable Install Guide and Dimensional Data sheet for rough-opening requirements and step-by-step installation.
